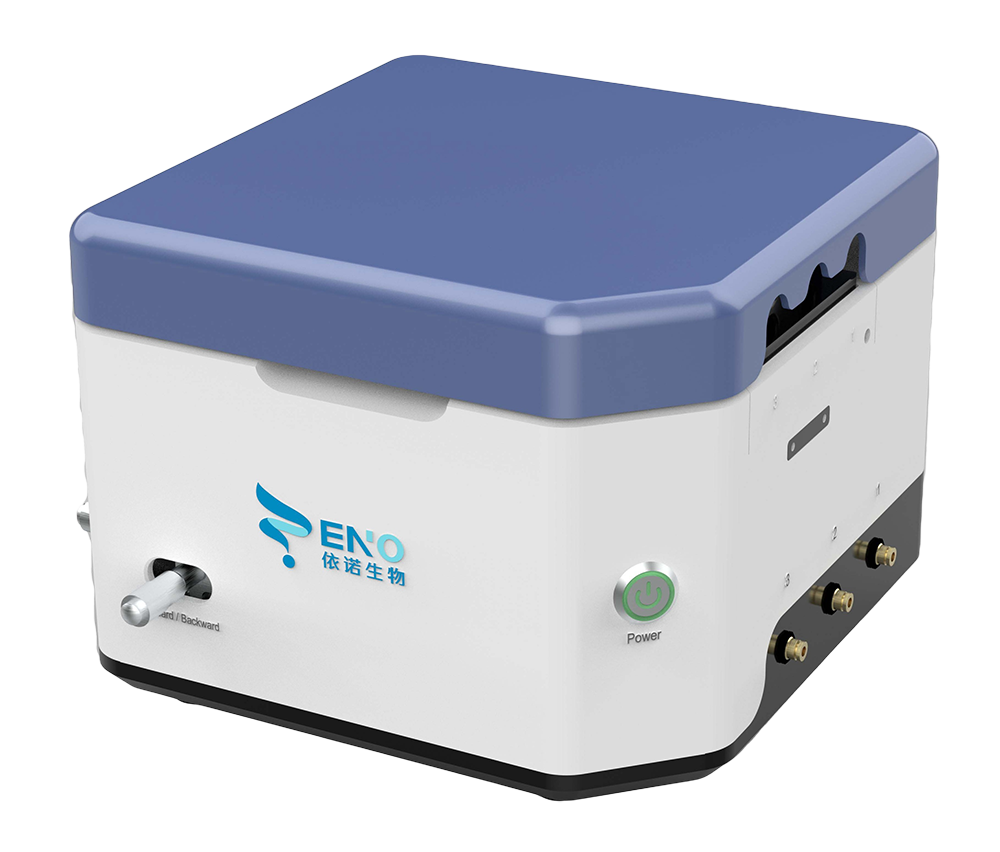

Liposyn Y

Description

Using advanced microfluidic technology, integrating pressure-driven, flow-monitoring and real-time imaging. Using pressure-driven mobile and dispersed phases, through the flow most sensor, into the microfluidic chip at a set flow rate, under the real-time monitoring of a fast camera to stably prepare highly reproducible and highly monodisperse microspheres and droplets.

Technical specifications

Two positive pressure output channels, 0-8000 mbarRequires external computer, software functions include: flow feedback control, automation scripts, real-time display and recording of pressure and flow.Sample volume: 1mL~100mLControllable total flow rate range ≤ 40 mL/min; flow rate accuracy, ≤ ±2With flow rate calibration function, can be calibrated to obtain more accurate flow rateEquipped with 2 ml, 15 ml, 50 ml adapters, can be customized to a larger volumeEquipped with standard LNP synthesis chip, can prepare LNP particles with particle size from 60 - 300 nmOptional microsphere preparation chip for preparation of micron-sized microspheresThe chip is made of PDMS.Optional optical inspection module for on-line real-time observation of the preparation status in the chip.Lens working distance: 5 mm; optical resolution: 2 μmLens working distance: 5 mm; field of view: 1.8*1.0 mmCamera resolution: 8.6 megapixelsCamera imaging speed: 30 FPS (maximum resolution)Precision two-dimensional translation stage, travel distance 13 mm, resolution 10 μm
